GRANEYE Installation Procedure

Introduction

• A width of 75–80 cm is required to install the GRAN EYE.
• Due to a revision of the installation procedure, the included “guide paper” and “guide sticker” are no longer necessary.We kindly ask that you dispose of them yourself.
  *Please note that these items will no longer be included in future shipments.

Items You Will Need

• Phillips screwdriver
• Measuring tape
• USB power adapter (Type-C connector)

1.Remove the Surround

If a surround is attached to your dartboard, please remove it before installation.

2.Check for Level Alignment

Make sure the dartboard is mounted level. If it’s tilted, adjust it at this point.

3.Install the camera bracket

The bracket for GRAN EYE should be installed on the extension line connecting the center of numbers “13” and “14” on the dartboard (symmetrical positions on each side).
Use the included L-shaped guide and install as follows.

1

The bracket for the GRAN EYE should be installed on the extension of the straight line connecting the centers of the numbers “13” and “14” on the dartboard (in a symmetrical position on either side).
Please use the included L-shaped guide to install it as shown below.

2

Align the curved edge of the L-shaped guide with the outer edge of the dartboard.Align it with the position of the number ’13’.

3

Align the center line of the L-shaped guide with the extension of the line connecting the center of the bullseye and the center of the double 13.
Hold the guide firmly to prevent it from shifting.

4

Temporarily stick the bracket to the wall, positioning it inside the recessed area at the edge of the L-shaped guide.

The double-sided tape is only for temporary positioning. In the next step, secure the bracket with screws.

5

Remove the L-shaped guide.

6

Secure the bracket using the included screws. Pre-drilling pilot holes will make the installation easier.

7

Attach the bracket on the opposite side (the number 14 side) using the same procedure.

Bracket installation is now complete.

4.Remove the dartboard

Temporarily remove the dartboard from the wall. It’s okay if the dartboard bracket remains attached.

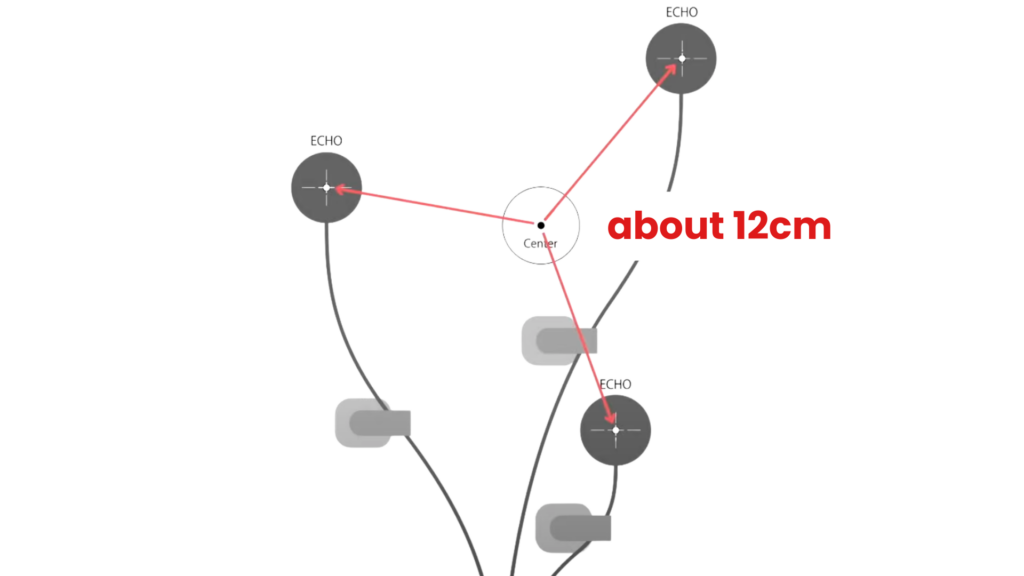

5.Attach the Echo Unit

1

Attach the included sponge to the Echo main unit.

2

Refer to the “Echo Unit” position indicated on the guide paper, and attach the Echo Unit to the wall.

The position indicated on the guide paper is for reference. Minor misalignment will not affect functionality.

6.Install the camera

1

A cap is attached to the camera lens. Gently pinch and pull it straight off.

Be careful not to rotate the lens ring.

2

Connect the Type-C end of the included USB-A to USB-C cable to the camera’s base connector.

3

Slide the camera into the bracket until it clicks securely.
The right camera slides in from the top down, and the left camera slides in from the bottom up.

7.Organize the cables

Use the cable clamps to bundle and organize the cables.

8.Reinstall the dartboard

Reinstall the dartboard and surround as they were before. Be careful not to touch or damage the camera.

9.Install the base unit

Install the bracket

Mark a point approximately 7 cm below the outer edge of the surround. Secure the bracket for the base unit to that position using screws.

Connect each cable to the base unit

Connect the Echo Unit and cameras using the provided cables.

Next, connect the power cable to the bottom of the base unit.

Install the base unit

Slide and fix the base unit onto the bracket, from right to left, until it clicks into place.

Connect the base unit’s power cable to a USB power source to complete the setup.
*USB adapter is not included.
